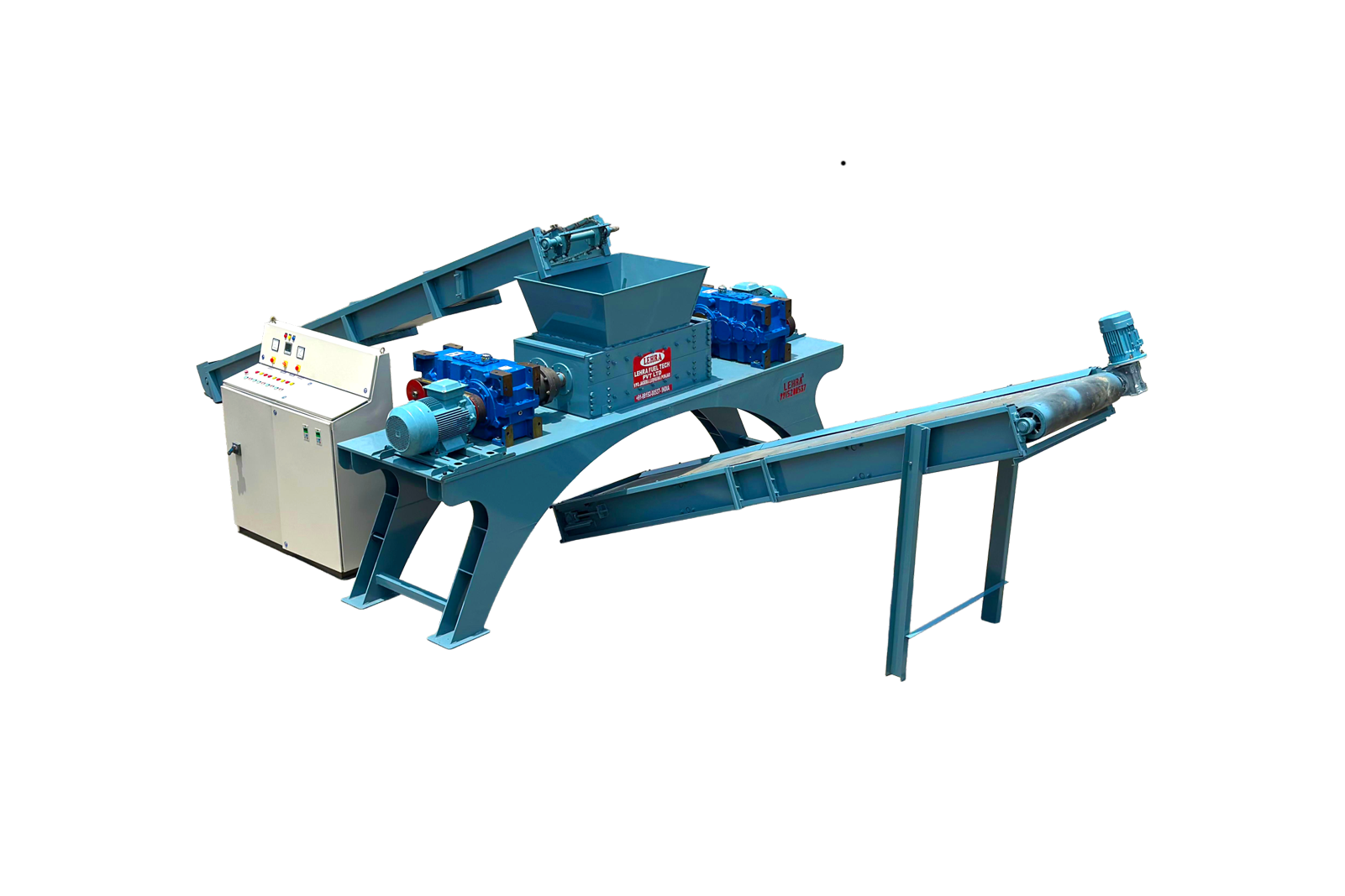

Dual Shaft Shredder

Lehra’s Dual Shaft Shredder features two opposing shafts fitted with multiple blades and spacers. Cleaning fingers are incorporated to maintain blade cleanliness and ensure accurate cutting of the material.

This heavy‑duty machine is built for high performance and durability, capable of processing a wide range of input materials. Optional accessories such as feed and discharge conveyors are available to enhance convenience. The in‑feed chamber is designed with an extra‑wide opening to allow for hassle‑free loading.

It includes Lehra’s programmable control panel which enables fully automatic operation. A built‑in auto reverse/forward function helps prevent overloading.

Specifications Details
Model Dual Shaft Shredder 2,000 kg/hr
Motor Power 30 HP (approx 22 kw)
Machine Size ~2300 × 1000 × 2100 mm
Machine Weight ~3000 kg
Blades Ø 250 × 25 mm, material 9 CrSi / high alloy steel

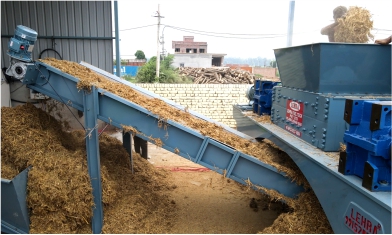

Key Features of Dual Shaft Shredder

  • Highly versatile: capable of shredding different types of feedstock
  • High capacity: engineered for large batch processing
  • Advanced technology: optimal shredding performance with minimal upkeep
product

Lehra's Dual Shaft Shredders
