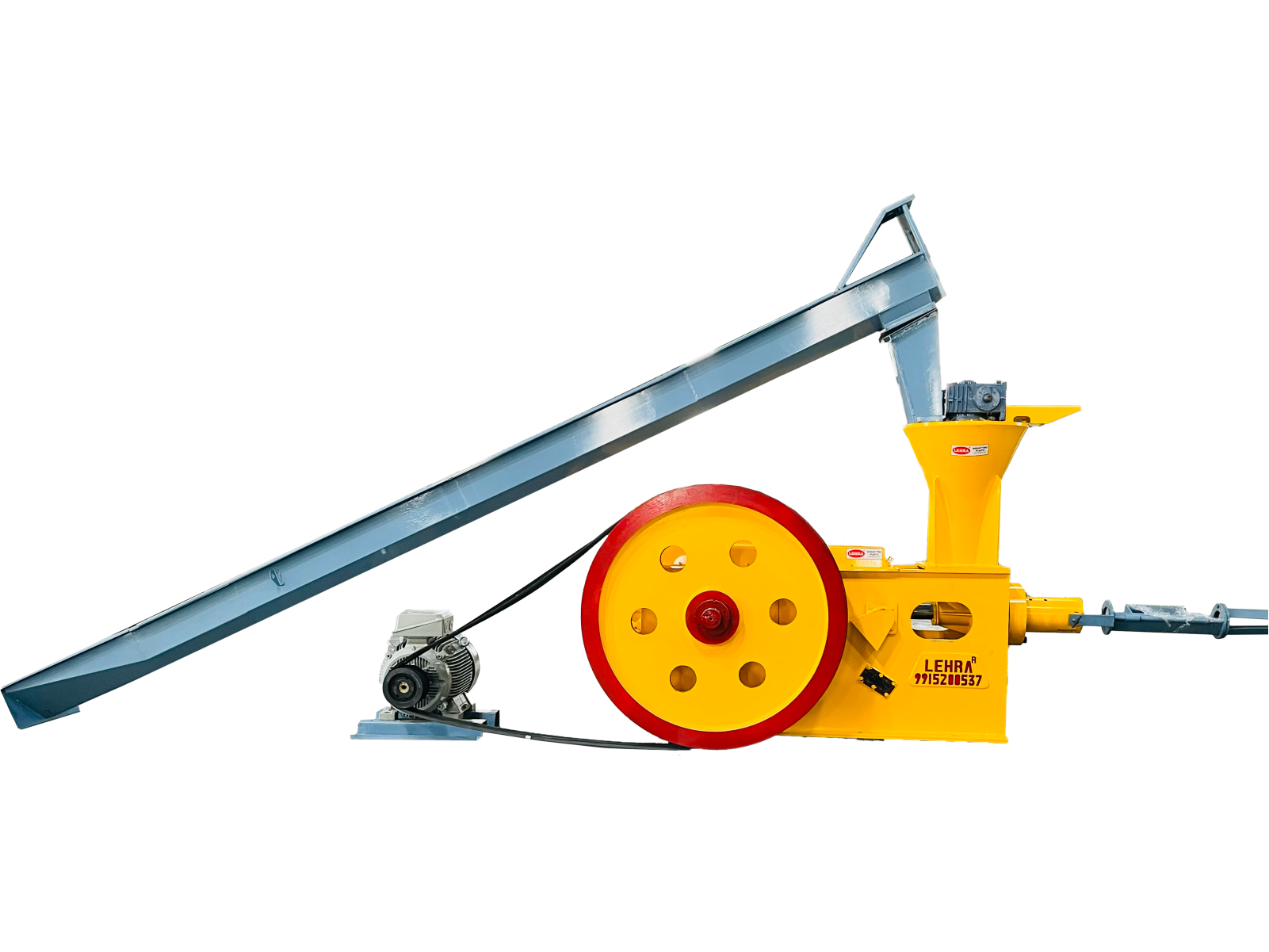

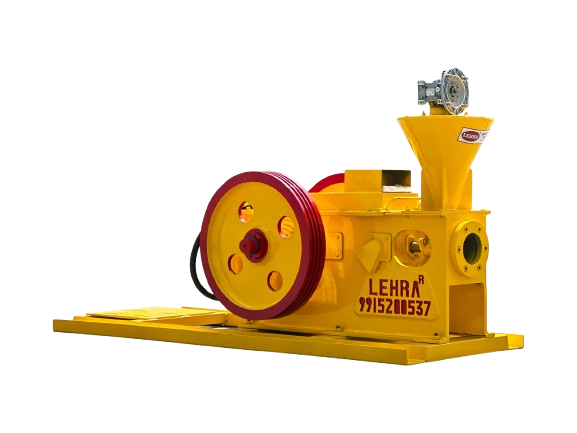

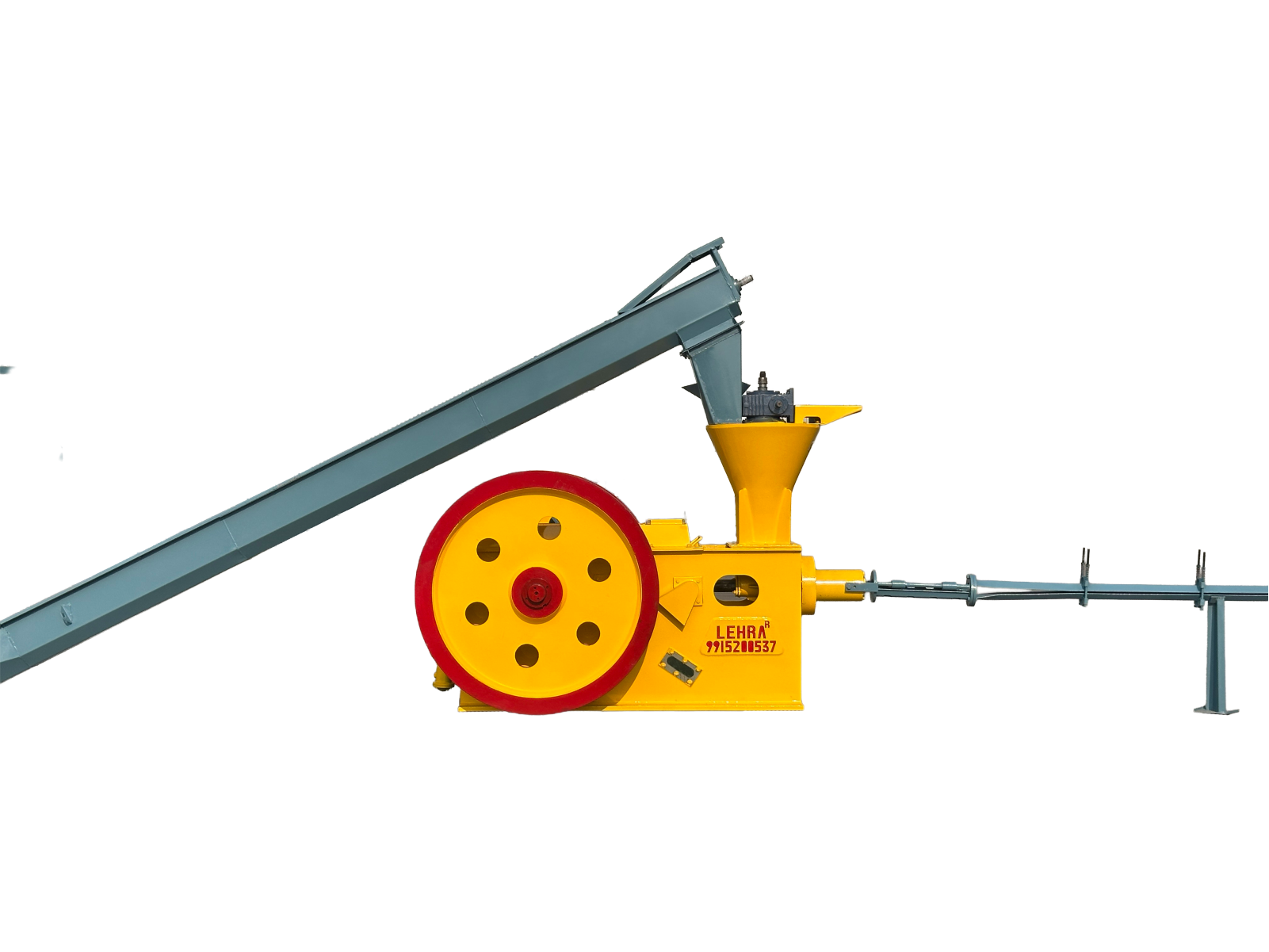

Briquette Press
Briquette Press is die and punch type mechanical press with two fly wheels. One fly wheel is driven by belts with Motor. Filtered & cooled lubrication oil is supplied by pump through pipes. Material is continuously fed through a hopper by means of a vertical feeder with its own gear box and a motor. Regulated feed to the press is provided by independently driven screw through flexible pulley/drive on motor. From feeding chamber material is compressed by ram through taper bore die. Briquettes comes out from cooling line. Total process is Continuous & Controled by panel. Briquette Press is used for binder less production of high density fuel Briquettes i.e. “biocoal” from all types of degradeable biomass. Residues & wastes such as groundnut shell, wood waste, baggasse (sugar cane stalk), cotton shell/stalk, mustard husk/straw, coffee husk, pine needle, saw dust etc. Acceptable moisture in raw material of Briquette is 8 - 12%. Briquette size starting from 30mm to 100mm
