Combo Model

Combo Model (Briquetting Cum Pellet Machine)

The Combo Model is an innovative dual-function system designed to produce both briquettes and pellets using a single integrated machine. It’s the perfect solution for industries seeking maximum versatility, high productivity, and optimal use of raw material — all while saving space, energy, and investment cost.

Parameter Value
Output Capacity 600 kg/hr – 2,000 kg/hr (depending on raw material & mode)
Dies Available Briquette Ø 40-100 mm / Pellet Ø 6-12 mm
Power Requirement From ~35 kW to ~90 kW (depending on output size)
Raw-Material Moisture 8-12% recommended for optimal compression
Machine Type Dual mode: ram-/die-compression for briquettes & pellet die for pellets

How It Works

  • Raw biomass material (wood chips, sawdust, agricultural residue etc.) is fed into the hopper.
  • The machine’s drive system engages, converting material either through the briquetting die or pelletizing die depending on mode selected.
  • In briquetting mode, the ram/compression mechanism produces cylindrical briquettes of specified diameter.
  • In pellet mode, the material is formed and cut into dense pellets via the extrusion or pellet die system.
  • Output is continuously discharged, cooled and collected for packaging or dispatch.
product

Combo Model different Models

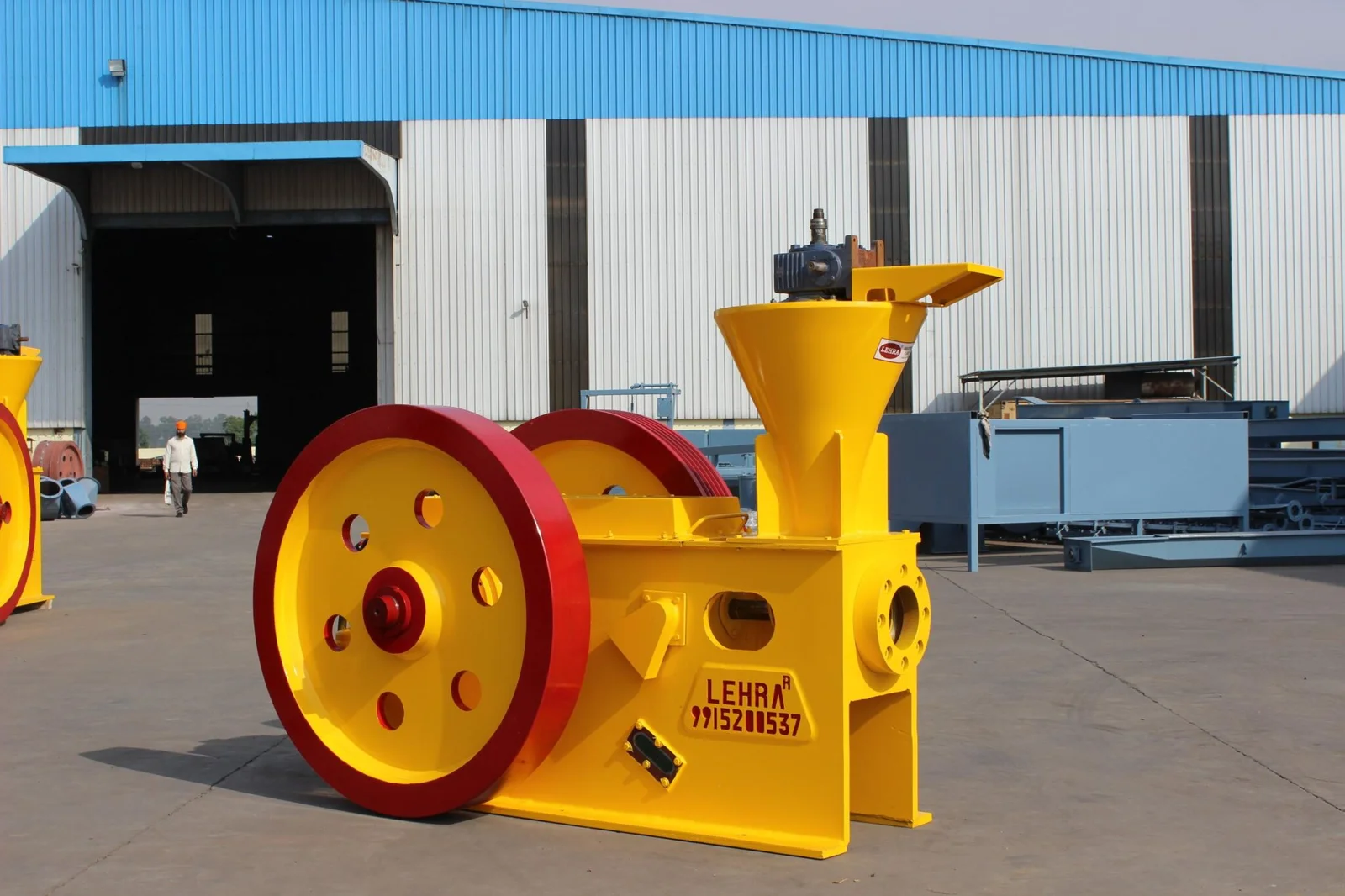

Image 1
70mm

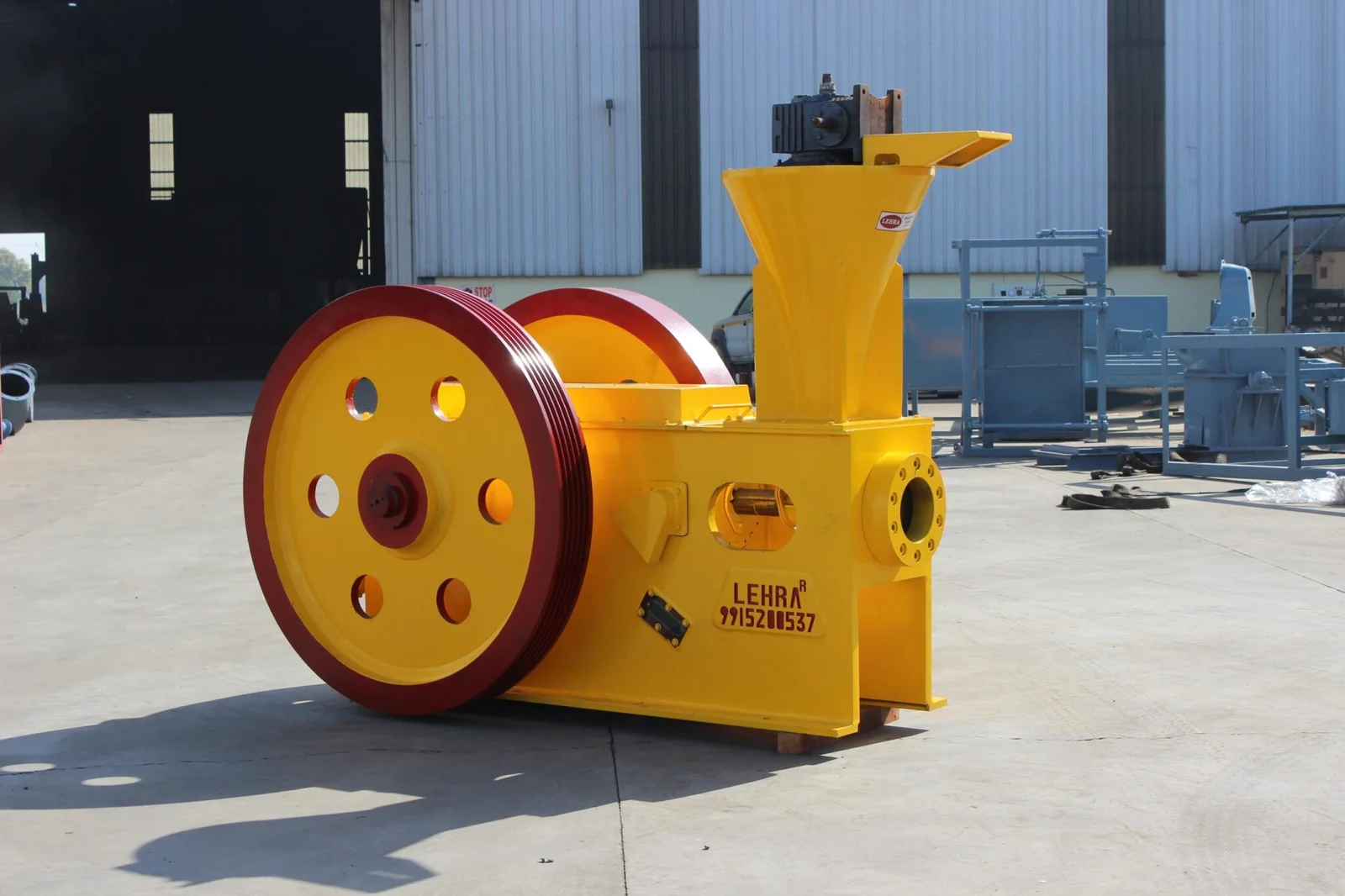

Image 1
90mm
