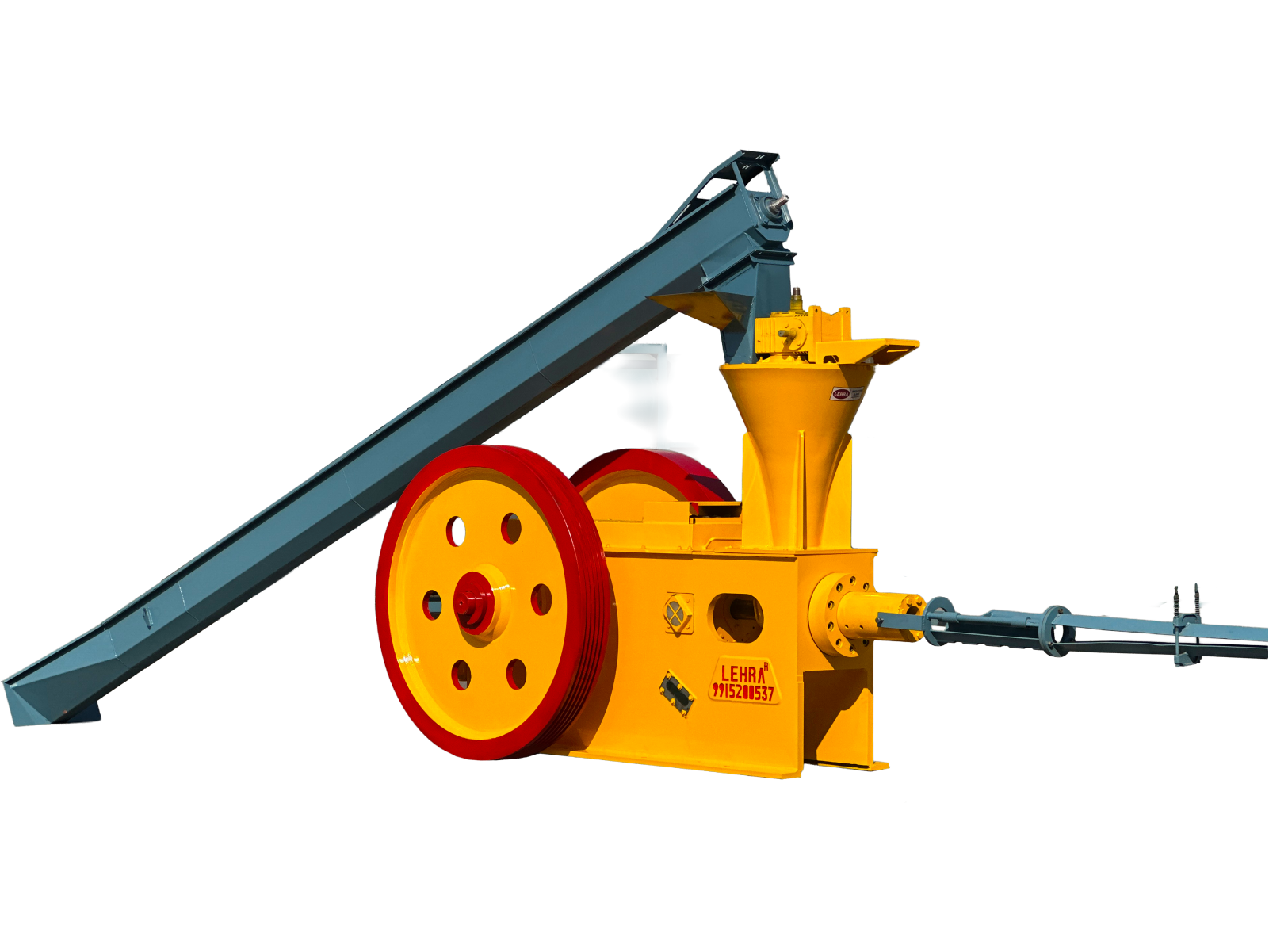

Briquette Press LBP 100

Material is continuously fed through a hopper by means of a vertical feeder with its own gear box and a motor. Regulated feed to the press is provided by independently driven screw through flexible pulley on motor. Dry ground or granulated material is fed to the top of the vertical feeder by screw conveyor. The vertical screw pre-compresses and forces the material downwards into pre-compression chamber. Here the material is forced by the ram through a die system into briquettes to the cooling line. The total operation is continuous and controlled from the main electrical panel. This CE certified Super Jumbo Briquette press come with production capacity of 2500Kg/Hrs with 89/114 HP. Some latest modifications in LBP 90 (2000KG) make it more economical and most effective model. This Model is Best Suitable where availability of raw material is high.
